Shafts screener MB-HDS207

Shafts screener MB-HDS207

Code: MB-HDS207


≥ 1,3 ≤ 2,8 Ton

Features

  • The MB-L120 S2 crushing bucket is designed for skid steers from 2.80 t and backhoe loaders from 5 to 7 tons. *
  • Easy to transport, compact, convenient, easy to use, and maintenance-free. *

Out of stock

Watch video Send request
3MB CRUSHER specifications
3MB CRUSHER product catalog

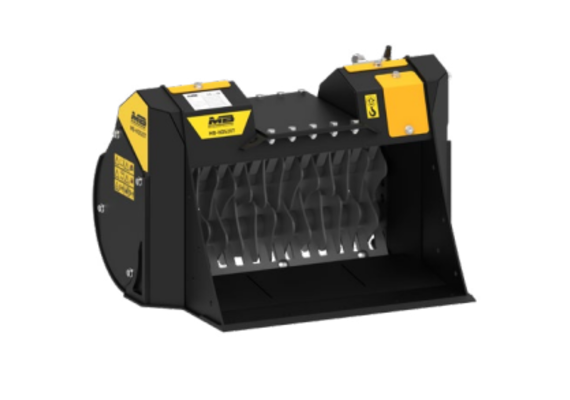

Shafts screener MB-HDS207

Shafts screener MB-HDS207

Weighing 98 kg, the unit is suitable for mini excavators with an operating weight ranging from 1.3 to 2.8 tons.

Technical features:

  • Optimally designed to collect and process material.
  • The coupler’s connection is located in the centre of the machine and is lower compared to the rest of the structure. This design creates less stress on the frame, improving manoeuvrability and more precision when processing material. The design also increases productivity.
  • The gears are protected, thanks to the fixed cover that shields them from harmful materials (sand, dirt, etc.)
  • The welded cover behind the machine protects the bolts and side casings.
  • The operator can easily replace the shafts on the job site.
  • Maintenance is simple and happens directly on site.
  • The shaft holder is included. The unit can be equipped with a kit that increases the unit’s load capacity, which goes from 50l to 60l.

Product specifications table
ModelMB-HDS207
Weight (without the capacity increase kit)98 Kg
Weight (with the capacity increase kit)113 Kg
Load capacity (without the capacity increase kit) 50 l
Load capacity (with the capacity increase kit) 60 l
Dimensions*740 X 545 X H 495 mm
Pressure> 200 bar
Oil flow rate**25 l/min



TECHNICAL SPECIFICATION
DOWNLOAD

MB CRUSHER specifications

DOWNLOAD

MB CRUSHER product catalog
