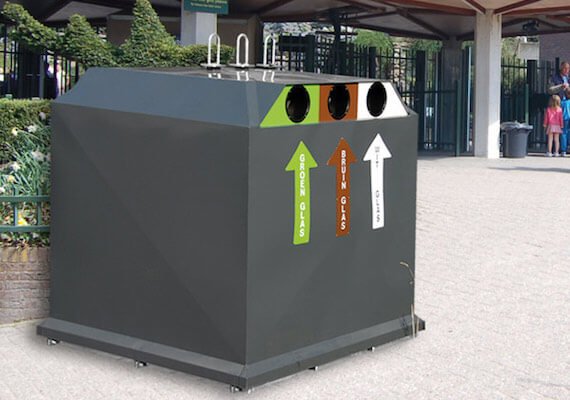

Models for glass | Volume (approx. In m³) | No. of chambers | Dimensions (w x d x h) (approx. In mm) (not incl. pick-up) |
C 101 – 103 | 3,25 | 1 ̶ 3 | 1600 x 1700 x 1490 |
C 101 – 103 | 3,6 | 1 ̶ 3 | 1600 x 1700 x 1650 |
Models for paper | Volume (approx. In m³) | No. of chambers | Dimensions (w x d x h) (approx. In mm) (not incl. pick-up) |
C 104 | 3,25 | 1 | 1600 x 1700 x 1490 |
C 104 | 3,6 | 1 | 1600 x 1700 x 1650 |
Models for textile | Volume (approx. In m³) | Design | Dimensions (w x d x h) (approx. In mm) (not incl. pick-up) |
C 105 | 3,25 | trap doors | 1600 x 1700 x 1650 |
C 105 | 3,60 | trap doors | 1600 x 1700 x 1810 |
C 105 | 3,25 | door | 1600 x 1700 x 1650 |
C 105 | 3,60 | door | 1600 x 1700 x 1810 |
C 105 | 3,25 | trap doors and door | 1600 x 1700 x 1650 |
C 105 | 3,60 | trap doors and door | 1600 x 1700 x 1810 |
C 105-II | 3,60 | trap doors | 1700 x 1600 x 1655 |
C 105-II | 4,50 | trap doors | 1700 x 1800 x 2030 |
C 105-II | 3,60 | door | 1700 x 1600 x 1655 |
C 105-II | 4,50 | door | 1700 x 1800 x 2030 |
C 105-II | 3,60 | trap doors and door | 1700 x 1600 x 1655 |
C 105-II | 4,50 | trap doors and door | 1700 x 1800 x 2030 |
