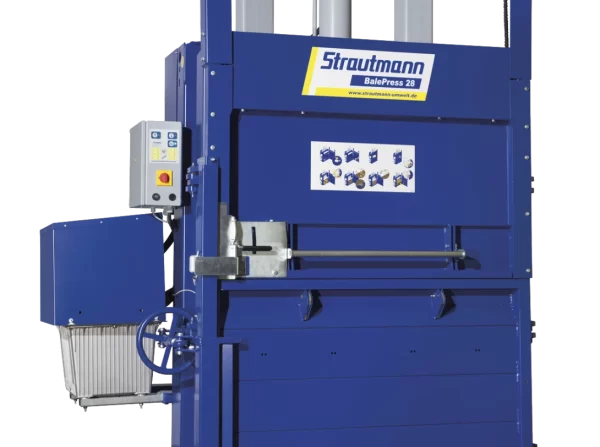

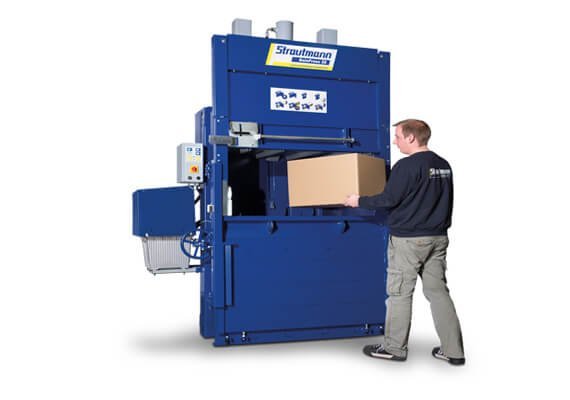

Vertical baling press BalePress 28

Code: BalePress 28


With these baling presses packaging material like paper, cardboard and film are compacted into direct marketable bales.

Vertical baler for compacting material to 1,2 x 0,8 x 0,8 m bales with a maximum weight of 320 kg.

Privalumai:

  • Savings in disposal costs
  • Improvement of in-house disposal-logistics
  • Less number of transports in-house and external
  • Time-saving – More time for your core business
  • High revenues for direct marketable bales

Out of stock




Vertical baling press BalePress 28

Packaging material needs to be disposed of and recycled. In case of annual material amounts from 25t up to 250t our balers with 28 tons pressing force are exactly the right solution for your disposal.

Fast, efficient and quiet in operationrecyclables like cardboard and film are being compacted. For you that means, loose material does not lie around anymore and space in your company is not wasted. In comparison with loose collection the press saves approximately 400kg on 1m³ instead of 10kg loose cardboard per 1m³. Thus our customers save not only save time for the transportation ways, they also often save forklift costs.

With these baling presses packaging material like paper, cardboard and film are compacted into bales which weight about 320kg.

Our baling presses are designed user-friendly and ensure a long life time. Our stable press-shield-guidance TopPlus® ensures not only high compaction of bales – furthermore stability of the baler and press plate is ensured and service costs are reduced. Using a sliding door you save time and space while opening the door. The sliding door is pushed up and does not stay in the middle of the room impeding transit traffic like usual doors.

For faster filling of the baler the sliding door can in addition be equipped with an automatic opening. People who prefer the Strautmann QuickDoor® can equip their baling press optionally with this door. The QuickDoor® makes operation more comfortable and handling fast and secure.

BalePress 18 with low installation height is especially constructed for buildings with limited ceiling height and BalePress 28 is additionally equipped with a very fast cycle time.

Optional: Tying with wire or twine

Product specifications table


Bale press 18

Bale press 28

Bale press 53

Hand wheel

x

x

x

HydroClose



opcija

Sliding door

x

x

x

Sliding door with automatic opening

opcija

opcija

opcija

QuickDoor®

opcija

opcija

opcija

EasyTie

x

x

x

Tying with strap

x

x

x

Tying with wire

x

x

x

Hydraulical bale ejection

x

x

x

Material selection switch

x

x

x

Press shield guidance TopPlus®

x

x

x

PowerSave®



x

x

Time contro

x

x

x

CircleSystem®

x

x

x

Technical data



Pressing force in kN

180

280

530

Bale weight in kg max.

250

320

400

Bale dimensions in m (l x b x h)

1,2 x 0,8 x 0,8

1,2 x 0,8 x 0,8

1,2 x 0,8 x 1,1

Cycle time in seconds

34

19

32

Electrical connection

400V 50Hz 4kW

400V 50Hz 4kW

400V 50Hz 4kW



Top plus®
Even with uneven filling of the press chamber an unbalance of the press plate is excepted due to the stable press plate guidance TopPlus®.

BaleMatic®
Safe bale ejection by hydraulical ejector and a long lifetime due to the separate cylinder.

QuickDoor®
Space saving swinging-sliding door with automatic opening for a safe and quick filling of the baler. No manual pressing of material into the chamber anymore.

CircleSystem®
Integrated down-holders prevent reexpansion of the material inside the chamber and ensure a higher bale density.

Time control
The press plate compacts the bale with full power for a specific time. Thereby high bale density and bale weights are reached. With pressure control, in contrast, press plate immediately moves up.

EasyTie
The bale is tied ergonomic friendly and fast whilst opened door.

HydroClose
The hydraulical door lock controls the re-expansion forces of big bales. A separate cylinder opens the door controlled and slowly so unexpected opening is avoided.

Integrated strap- & wire hooks
In the press plate integrated strap- and wire hooks ensure an easy, comfortable and fast bale tying.

PowerSave®
Energy-efficient control of the press plate due to the tandem pump. In comparison with single-pump systems 50 % energy costs are saved.
