Semi-underground system GTV

Code: BAU GTV


Efficient and Accessible Collection of Waste and Recycling Materials – for Housing Complexes, in the Town, for Rest Areas and Recreational Facilities.

Available capacities 3, 4 and 5 m³.

Pagrindinės charakteristikos:

  • Much more efficient collection
  • Under ground it’s cooler, more hygienic
  • All of the waste has limited access
  • Low-level throw-ins – easy access for children and the handicapped in wheel chairs and senior citizens
  • An alternative to an underground system; stands only 900 mm above ground; no pavement plateu requiredUnder ground it’s cooler! More hygienic; no nasty smells or problems with vermin
  • OMO emptying by crane: labour-saving, cost-effective, effects of demographic change taken into consideration

Out of stock




Semi-underground system GTV

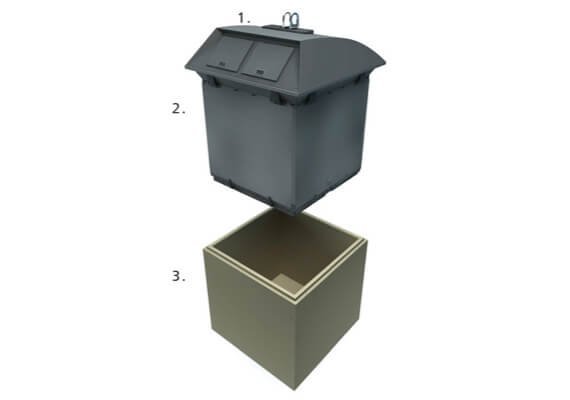

Construction:

  • Pick-up system for truck crane
  • Collecting container made of galvanized steel sheet
  • 1, 2 or 3 chambers
  • Various throw-ins
  • Basin-like trap doors retain any remaining liquid
  • Glass: trap doors held and operated by high-strength chains, insulated against noise and connected to pick-up system
  • Paper/household refuse: trap doors held and operated by traverse / leverage system which is connected to pick-up system
  • Concrete outer is reinforced, cast in one piece, watertight
  • Pump sump
  • Anchor straps on the side to facilitate transport

Product specifications table


GTV 3000L

GTV 4000L

GTV 5000L

Volume (approx. In L)

3000

4000

5000

Height (not incl.pick-up)(approx. In mm)

2070

2550

3030

Height visible section in mm

1370

1370

1370

Built-in dimensions (l x w x h) (approx. In mm)

1665 x 1665 x 700

1665 x 1665 x 1180

1665 x 1665 x 1660

Weight concrete outer (approx. In kg)

3290

4010

4700

Weight steel collecting container (approx. in kg)

460

510

560

Total weight (approx. in kg)

3750

4520

5260

TECHNICAL SPECIFICATION
