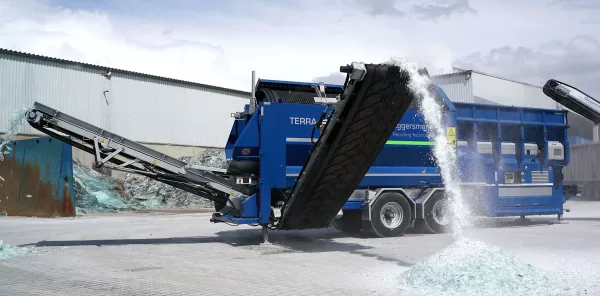

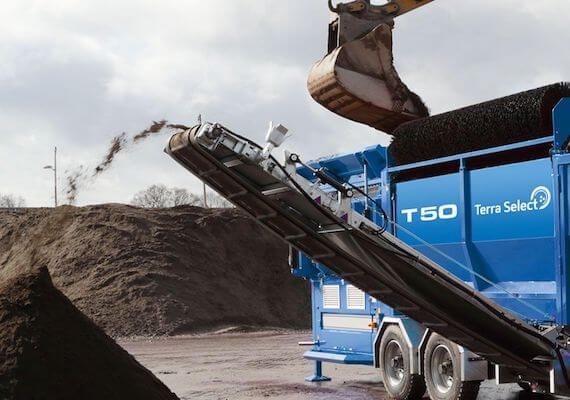

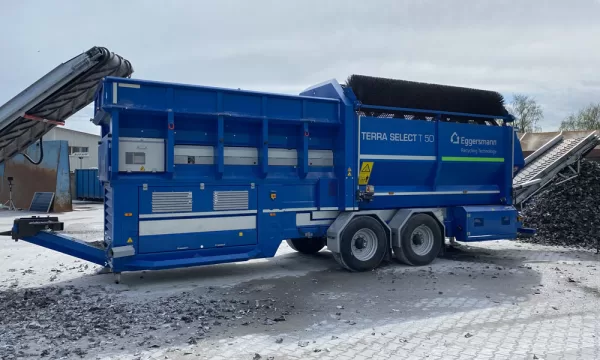

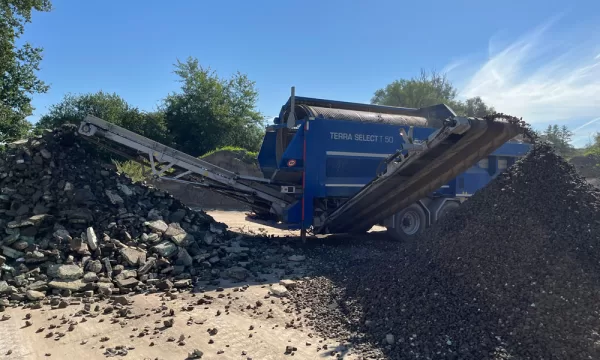

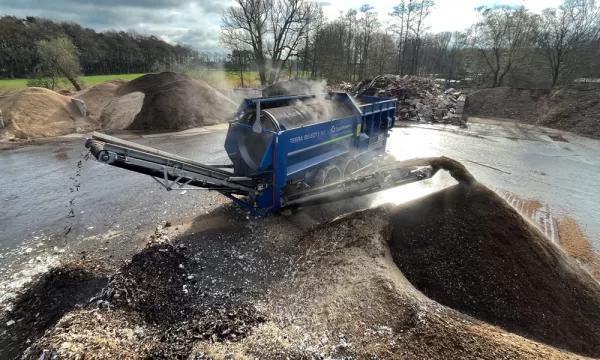

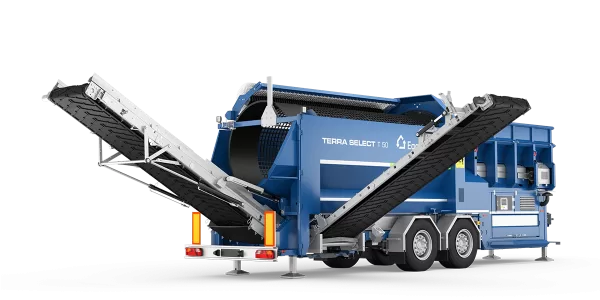

Trommel Screen Terra Select T 50

Code: T 50


Universal trommel screen

Savybės:

  • Trommel diameter of 2000 mm (normal in this class: 1800 mm)
  • A screening output up to 120 m³/h
  • Large fill hopper with a volume of more than 5 m³
  • Quiet running 55 kW diesel motor
  • Can use screening drums of other manufacturers

Out of stock




Trommel Screen Terra Select T 50

The Terra Select T 50 is the all-rounder among the trommel screening machines and a master of transformation: It only takes a few modifications to be able to even use the trommels of others manufacturers in this model. Furthermore, the T 50 technology represents the combination between compact measurements and outstanding screening performance. Because of its adaptability and its convincing technical arguments, this model is perfectly placed in the five metre class.

  • The Terra Select T 50 has a trommel diameter of 2000 mm (normal in this class: 1800 mm); increasing the screening performance by up to 20 %.
  • Accordingly, the T0 5 is equipped with a large fill hopper with a volume of more than 5 m³.
  • Many of the T 50’s drive elements originated in its “big brother”, the T 60; this ensures a long service life and provides for a higher intrinsic value.
  • Special features: quiet running 55 kW diesel motor, can use screening drums of other manufacturers, one piece conveyor belt.

Product specifications table

Fractions

2

Trommel length

4500 mm

Trommel diameter

2000 mm

Effective screening area

25 m²

Screening performance up to

120 m³/h

Drive

55 kW diesel motor

Tank volume

300 l

Fine grain belt length

7200 mm

Fine grain belt width

1000 mm

Oversize grain belt length

4900 mm

Oversize grain belt width

1000 mm

Hopper volume

>5 m³

Feeding width

3650 mm

Hopper depth

1800 mm

Feeding height

2850 mm

Approved total weigth

16000 kg
