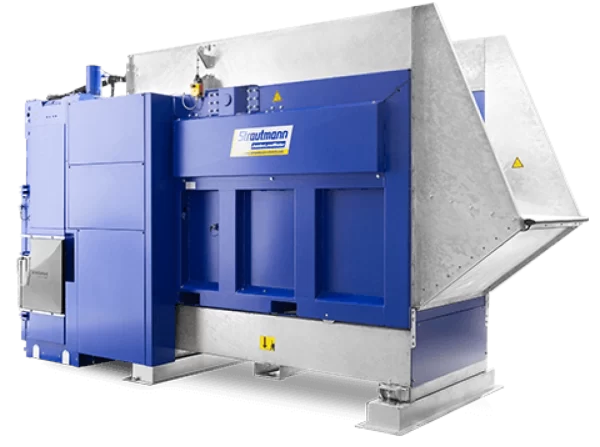

JumboLoadBaler
Product code JumboLoadBaler
With its compact design, this machine is more than just a cardboard press, as it enables installation close to the point of use, eliminates unnecessary walking distances and streamlines time-consuming processes thanks to the particularly large feed opening and automatic filling of the bale chamber. This effective disposal solution reliably compacts cardboard, paper, octabins, film, PET bottles and beverage cans.
The JumboLoadBaler marks a (r)evolution for the compaction of bulky and large-volume packaging materials in companies: With its compact design, this machine is more than just a cardboard press, as it enables installation close to the point of use, eliminates unnecessary walking distances and streamlines time-consuming processes thanks to the particularly large feed opening and automatic filling of the bale chamber. This effective disposal solution reliably compacts cardboard, paper, octabins, film, PET bottles and beverage cans.
How does the JumboLoadBaler work?
The feed unit automatically transports the material to the rotor, which transports it into the bale chamber after pre-compaction. As soon as this is filled, compaction starts automatically. When the bale ready message lights up, tie the bale manually and eject it using the hydraulic ejector. In contrast to conventional vertical and horizontal balers or press containers, you benefit from enormous time savings in recycling by using our JumboLoadBaler.
| JumboLoadBaler | V4190007 |
| Electrical connector/ power supply: | 400V, 50 Hz 32 A Category C |
| Electrical Power: | 13,2 kW |
| Protection class: | IP54 |
| Pressing force: | 600kN |
| Weight of the machine ca.: | 5950 kg |
| Cycle Time: | – sec. |
| Bale weight ca.: | 400 kg |
| Bale size in the chamber (wxdxh): | 1200 x 800 x 1000 mm |
| Bale tying: | with four wires |
| Remark: | Hydraulic bale tipping available |
Your advantages
- Large chute for depositing large volumes of recyclables
- Streamlining the disposal process by reducing the handling of recyclable materials
- System integration into existing processes
- Increase productivity by up to 400
- ROI is usually achieved after less than 2 years
- Significantly fewer truck journeys
- Directly marketable bales for optimal disposal
Contact our specialist – we will select a solution according to your needs.
-
We respond within 1 business day
-
Free consultation
-
Individual offer and estimate
Rytis Bakševičius
Director
Related products
More products

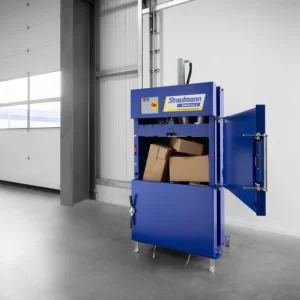

The BalePress 28 vertical balers compress packaging materials such as paper, cardboard and films into industrial-sized bales weighing around 320kg in a very short time. The bundles can be strapped with wire or tape.
