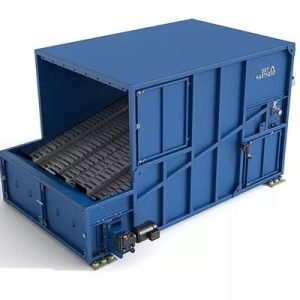

Ballistic separator - BS
Product code BSH
The BRT HARTNER BS Ballistic Separator impresses with its robust machine design for continuous operation as well as with its wide range of variants – different designs, variable widths, lengths and additional equipment are available.
Product Highlights
- Different lengths and working widths for different throughput capacities
- Three machine types for three special types of application
- Unique straight shafts with individually exchangeable
Special Bearings
- Eccentric Bearings can be replaced without removing the shaft
- No high-maintenance crankshaft
- Shock absorber for each paddle
- Central lubrication system
How Does a Ballistic Separator Work?
- It separates the material into three fractions. Separation takes place in just one step. The fed material is conveyed both vertically and horizontally on the paddles. The vertical acceleration mixes the material thoroughly, resulting in good separation and a high separation quality.
BRT HARTNER BSH
- The BRT HARTNER BSH is a Ballistic Separator for packaging and household waste (single piece weight: < 10 kg). The paddles and sieve meshes are made of unalloyed construction steel.
BRT HARTNER BSV
- The BRT HARTNER BSV is designed for heavy applications with commercial waste and mixed construction waste (single piece weight: < 30 kg). The paddles and sieve screens consist of wear-resistant steel. The lateral sheets at the paddles are additionally reinforced. Furthermore, the entire machine frame and the shafts are adapted to the increased requirements. All eccentric bearings are doubled.The BSV has geared motors with 22 kW drive power.
BRT HARTNER BSW
- The BRT HARTNER BSW is a medium-heavy machine for household and commercial waste (single piece weight: < 20 kg). The reinforced paddles and sieve meshes are made of wear resistant steel. This ensures a long service life even with rough applications.
The BRT HARTNER BSH is a ballistic separator for packaging and household waste (unit weight: < 10 kg). The blades and screen mesh are made of unalloyed structural steel.
The BRT HARTNER BSW is a medium-weight machine for household and commercial waste (unit weight: < 20 kg). The reinforced plates and screen mesh are made of wear-resistant steel. This ensures a long service life even under rough handling.
The BRT HARTNER BSV is designed for heavy duty work with commercial and mixed construction waste (unit weight: < 30 kg). The blades and screen mesh are made of wear-resistant steel. The side sheets are additionally reinforced at the panels. In addition, the entire machine frame and shafts have been adapted to the increased requirements. All eccentric bearings are double. In contrast to the BSH and BSW versions, both shafts of the BSV are driven by an electric gear motor with an output of 22 kW.
| BS 40 | BS 45 | BS 60 | BS 90 | BS 120 | |
| Useful width | 2.070 mm | 2.070 mm | 2.770 mm | 4.140 mm | 5.540 mm |
| Plate length | 5.080 mm | 6.300 mm | 6.300 mm | 6.300 mm | 6.300 mm |
| Drive power | 11 kW* | 11 kW* | 11 kW * | 22 kW | 22 kW |
| Permeability* | 40 – 45 m³/h | 45 – 60 m³/h | 60-90 m³/h | 90-120 m³/h | 120- 200 m³/h |
| Mesh area | 10,5 m² | 13 m² | 17,4 m² | 26 m² | 34,9 m² |
| Plate no. | 6 | 6 | 8 | 12 | 16 |
| Height – machine frame | 1,500 mm | 1,500 mm | 1,500 mm | 1,500 mm | 1,500 mm |
| Length – machine frame | 5.800 mm | 7.100 mm | 7.100 mm | 7.100 mm | 7.100 mm |
*BSV version has a drive power of 22 kW
- Robust ballistic separator design
- Separation into three fractions is done in one step
- High quality of separation
- Light fraction dust and adhesion removal
- Optimal separation result with different materials
- Easy to maintain bearings and shafts
- Interchangeable screen grids on panels
- Lightweight and direct drive system
