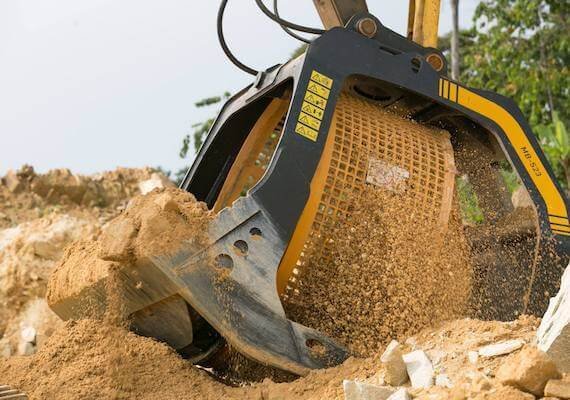

Screening bucket MB-S23

Code: MB-S23


The largest screening bucket in the world, unique in its kind, can be used with excavators greater than 35 Ton.

Ideal for use before or after crushing, the MB-S23 screening bucket will reduce crushing time up to 60%.
It also allows the screening of natural material (quarry residues, dry soil, and river stone) of any kind, making it convenient for on-site processing.

Sijojimo kaušas tinka:

  • Excavators starting from 35 Ton

Out of stock




Screening bucket MB-S23

The screening buckets MB are equipped with baskets formed by interchangeable modular panels, available with holes of different sizes based on requirements.

Applications:
Primary screening of scrap material, demolition material, filling material for excavations, and material resulting from the reclamation of rocky soil
Selection of pebbles in waterways
Cleaning of beaches
A crucial piece of equipment in all situations were smaller pieces need to be obtained

Perfect for the screening and selection of natural materials, both before and after the crushing phase, the MB-S Screening Buckets reduce crushing times by up to 60%, consequently allowing you to salvage materials suited to the type of job being carried out, and to manage them in the best way possible.

Product specifications table

Model

MB-S10 S4

MB-S14 S4

MB-S18 S4

MB-S23

Recommended excavator

≥ 3,5 Ton

≥ 9 < 20 Ton

≥ 20 < 35 Ton

≥ 35 Ton

Recommended backhoe/mini excavator

*≥ 4 < 9 Ton

Weight

0,39 Ton

1,10 Ton

2 Ton

3,75 Ton

Load capacity

0,32 m³

1,10 m³

2,40 m³

4,30 m³

Pressure/Counter pressure

130 bar

150 bar

200 bar

320/5 bar

Oil flow

40 l/min

60 l/min

120 l/min

160 l/min

TECHNICAL SPECIFICATION

MB Brochure 2018

MB-S23 Brochure
