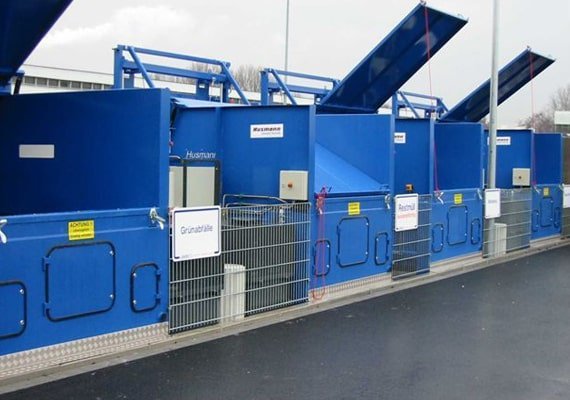

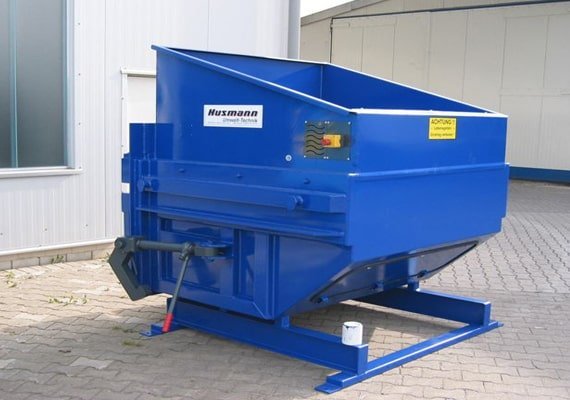

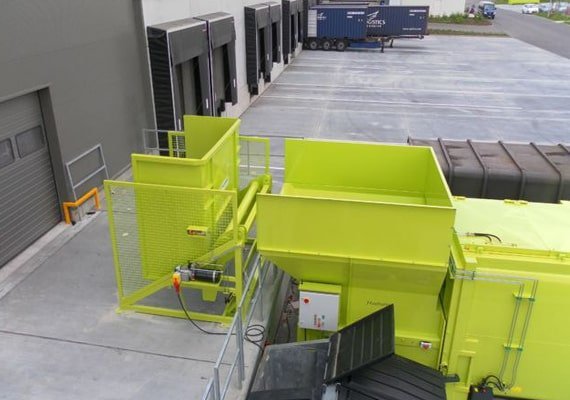

Short Static Compactor HUSMANN
Product code H-ST
High compaction force and the easily maintainable and robust design of the short compactors contribute to the excellent performance of the machines.
We offer complete systems from a single source. From the first plant planning to the integration into your process flows.
Depending on the type of waste, the amount of waste, the size of the piece and local conditions, we will configure it especially for you the optimal static compactor. Due to the high pressing force, a large volume reduction of the materials to be compacted is achieved. The static compactors can be combined with containers for all common discharge systems.
The designs offer a wealth of uses: as residue press, in the printing area, as Kurzbaupresse with small footprint and more.
The devices are characterized by a high pressing force (from 30 to 50 tons), high filling weights, impeccable workmanship, long service life for years of carefree use by the operator.
| Type | ST-AN | ST-SEN | ST-SEL | KMP 100 | ST-SEN T* | ST-SEL T* | KMP 100 T* | ST-SEL TS* |
| Power (kW) | 5,5 | 5,5 | 5,5 | 5,5 | 5,5 | 5,5 | 5,5 | 5,5 |
| Total lenght (mm) | 1,515 | 1,845 | 2,245 | 2,595 | 2,000 | 2,500 | 2,350 | 2,860 |
| Filling opening (mm) | 918 x 1,500 | 962 x 1,860 | 1,510 x 1,860 | 1,224 x 1,270 | 680 x 1,860 | 1,225 x 1,860 | 1,225 x 1,270 | 1,480 x 1,860 |
| Ram stroke (mm) | 1,120 | 1,370 | 1,920 | 1,582 | 1,440 | 1,920 | 1,582 | 2,300 |
| Ram height (mm) | 768 | 600 | 600 | 600 | 600 | 600 | 600 | 600 |
| Volume per stroke (cbm) | 1,0 | 1,1 | 1,7 | 1,0 | 0,9 | 1,4 | 0,9 | 1,7 |
| Time per stroke (s) (without load) | 36 | 43 | 59 | 59 | 48 | 59 | 59 | 45 |
| Volume per hour, theoretical (m³) | 112 | 95 | 104 | 61 | 67 | 86 | 52 | 137 |
| Average cycle time (sec) | 42 | 50 | 68 | 68 | 56 | 68 | 68 | 65 |
| Volume per hour, practical (m³) | 97 | 82 | 90 | 53 | 58 | 74 | 45 | 94 |
| Compaction force (kN, to) | 340/34 | 340/34 | 340/34 | 340/34 | 340/34 | 340/34 | 340/34 | 340/34 |
*With doors closing device
The coating
- High-quality two-component coating
- years of UV resistance
- high scratch resistance
- safe protection against corrosion
- easy cleaning
- Colour according to customer requirements
Processing
- reinforced press floor in longitudinal and transverse directions
- the floor of the press is made of highly wear-resistant fine-grained structural steel
- long service life due to robust construction
- highest quality using state-of-the-art robotic production
Equipment
- Variants with different compression forces from 30 to 50 tonnes
- high quality hydraulic and electronic components
- continuous monitoring of oil level and temperature
- external hydraulic unit
- easy to maintain and reliable
- adjustable piston
- manual (optionally automatic) connection to the ratchet
- full container indication
Contact our specialist – we will select a solution according to your needs.
-
We respond within 1 business day
-
Free consultation
-
Individual offer and estimate
