TEUTON Z 60 - Multi-purpose slow-moving single shaft shredder
Product code Z60
TEUTON Z60 – From initial crushing to the final product with just one machine. An extremely versatile single shaft shredder.
- Powertrain – diesel engine
- Chassis – wheeled semi-trailer or crawler
TEUTON Z 55 privalumai:
- 30 interchangeable shredding teeth in three rows distributed over the roller surface
- Variable final grain size due to tools-less cutting gap adjustment
- Screen basket system exchangeable without tool use (80 mm - 250 mm)
- Hydraulically swingable maintenance door for easy access to the shredding chamber
- Large and wide conveyor belts for maximum material discharge
- Discharge height up to 5 m
- Storage space for all options
- Hydraulic / mechanical driveCentrinis
- aptarnavimo taškas – palengvinta priežiūrą
- Central maintenance point – facilitated maintenance
- Neodym magnetic separator whose working height is hydraulically adjustable allows for discharge of metal scraps on both sides
Description:
Semi-trailer or track-mounted, versatile slow-moving single-shaft Eggersmann TEUTON Z 60 with 3.With a rotor length of 00 m, the Eggers Eggertsel Eggertz Z Z, with a rotor length of 100 m, can shred a wide range of waste and materials quickly, efficiently and with high quality – from wood waste, green waste and stumps to bulky waste, furniture, mattresses, tyres, as well as plastics and films, household and industrial waste, sleepers, electric cables, etc.
A simple and robust rotor-to-preblade gap adjustment system (over 10 options) and the use of sieves help to get the right size fraction after shredding.
| Total weight | 32 t (semi-trailer) / 34 t (tracks) |
| Chassis | Semi-trailer / Crawler chassis |
| Engine | Cummins QSX15 diesel engine |
| Emission standard | Stage V |
| Power | 447 kW (600 hp) |
| Number of shafts | 1 |
| Rotor length | 3000 mm |
| Rotor diameter | max. 1050 mm |
| Number of teeth replaced | 30 |
| Rotor speed (adjustable) | max. 40 lcm/h |
| Rotor gear | hydraulic/mechanical planetary |
| Optional equipment available | Interchangeable screen system, neodymium melt magnetic separator, site drive, hopper elevation, etc. |
Contact our specialist – we will select a solution according to your needs.
-
We respond within 1 business day
-
Free consultation
-
Individual offer and estimate
Vytautas Jauga
Project Manager
Related products
More products

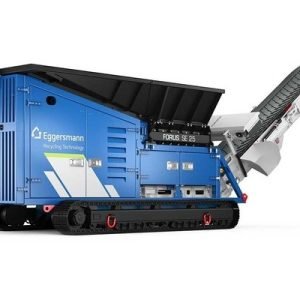

The FORUS F 25 is a twin-shaft slow chipperfor the primary shredding of a wide range of materials and waste.
