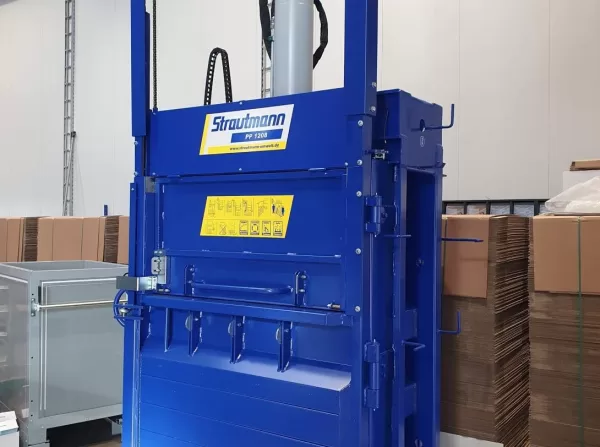

Vertical baling press PP 1208

Code: PP 1208


Out of stock

Send request

PRODUCT DESCRIPTION
Product specifications table


PP 1208

PP 1208 Plus 70

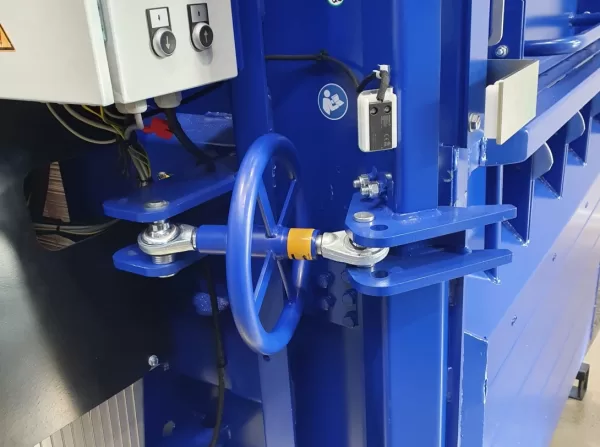

Hand wheel

x

x

HydroClose

optional

optional

Hydraulical door damper

optional



QuickDoor® l

x

x

EasyTie

x

x

Tying with strap

x

x

Tying with wire

x

x

BaleMatic®

x

x

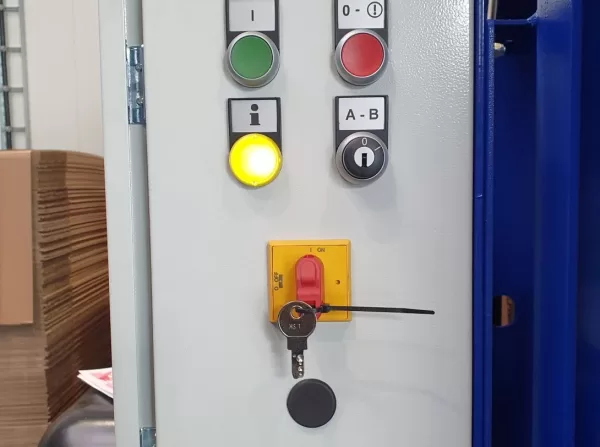

Material selection switch

x

x

Integrated strap – and wire hooks

x

x

Press shield guidance TopPlus®

x

x

PowerSave®

x

x

Time control

x

x

CircleSystem®

x

x

Automatic strap brake

x

x

Technical data



Pressing force in kN

580

700

Bale weight in kg max.

400

450

Bale dimensions in m (l x b x h)

1,2 x 1,1 x 0,8

1,2 x 1,1 x 0,8

Cycle time in seconds

37

37

Electrical connection

400V 50Hz 4kW

400V 50Hz 5,5kW



Top plus®
Even with uneven filling of the press chamber an unbalance of the press plate is excepted due to the stable press plate guidance TopPlus®.

BaleMatic®
Safe bale ejection by hydraulical ejector and a long lifetime due to the separate cylinder.

QuickDoor®
Space saving swinging-sliding door with automatic opening for a safe and quick filling of the baler. No manual pressing of material into the chamber anymore.

CircleSystem®
Integrated down-holders prevent reexpansion of the material inside the chamber and ensure a higher bale density.

Time control
The press plate compacts the bale with full power for a specific time. Thereby high bale density and bale weights are reached. With pressure control, in contrast, press plate immediately moves up.

EasyTie
The bale is tied ergonomic friendly and fast whilst opened door.

HydroClose
The hydraulical door lock controls the re-expansion forces of big bales. A separate cylinder opens the door controlled and slowly so unexpected opening is avoided.

Integrated strap- & wire hooks
In the press plate integrated strap- and wire hooks ensure an easy, comfortable and fast bale tying.

PowerSave®
Energy-efficient control of the press plate due to the tandem pump. In comparison with single-pump systems 50 % energy costs are saved.

TECHNICAL SPECIFICATION

Balers 2018 Brochure
