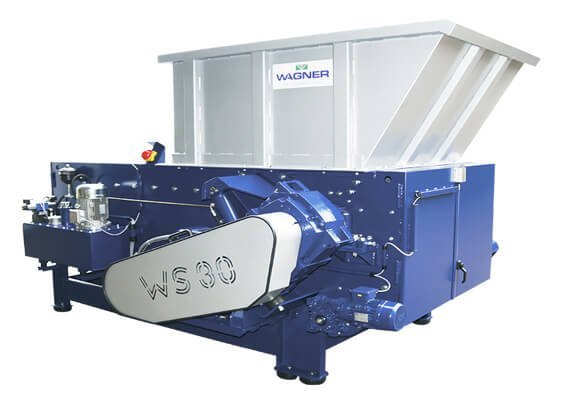

Wagner WS30 shredder

Wagner WS30 shredder

Find the optimal Wagner chipperto meet your requirements.
And if you need, even more, we’ll create the chipperyou want.

Maximum quality for more than 30 years

• Use handmade products made in Austria
• Experience innovative and award-winning technologies
• All Shredders: Durable. Lasting. The highest quality
• Each machine is made of the highest quality materials

Control equipment:

• Optimized power management system based on PLC
• Convenient to use 12-inch touch screen
• 10 optional parameter sets (work programs)
• Quick selection of different parameter sets at the touch of a button
• Precise rotor current control for maximum performance
• Status notifications
• Soft start

Shredding knives:

• Robust reusable knives made of special steel, screwed to replaceable holders – maintenance-free, quick-change system
• Carbide blades for longer service on request
• You can choose from a variety of knife shapes and sizes, square knives

Rotor:

• Protected against wear
• High number of blades results in lower rotor heat emission and higher efficiency
• Rotor cooling is available on request

Actuator:

• Belt drive system (V-belts)
• Reliable, top-of-the-line patented KIBO gearbox made in Europe with a high reliability factor
• Hydraulic drive damping system to protect against overload (eg extraneous bodies)
• Different power levels are available

Pusher:

• Hydraulic cylinder with universal joint
• Pusher with adjustable scraper for sealing, used on both sides
• Roller bearings in guides, controlled by kinematics
• Optional installation of a frequency converter for even higher results

Hydraulic equipment:

• Top quality components
• High power
• Hydraulic block valve for shock absorption to protect the piston cylinder

Screens:

• Solid made of Hardox steel
• Short distance to blade tip for higher performance
• Quick and easy screen segment change

Rotor bearings:

• The rotor is adjusted by precisely changing the gap between the blades and the counterblade
• Robust and easy to maintain
• The bearings are mounted in such a way that they are not affected by dirt entering the mechanism

WS30XL For wood chipping:

Thanks to its extended pusher, this special WS30 model can also handle very long wooden boards and waste efficiently.
The working area of this machine is 1350 x 2000 mm
